HOW TO ACCESS THE

Remote Access Portal image

Via a Windows Computer





Note: Accessing the USAR RAP will keep your ARNet account active between Battle Assemblies (BA).  You do need to [already] have an ARNet account before attempting to access.  If you don't have an ARNet account, Army Reserve Soldiers can request one via:  https://aramp.usar.army.mil  (You need to have your AMID username and password ready).

NOTE: For problems or questions regarding your ARNet account, call the Army Enterprise Service Desk-Reserve



Helpful guide



Mac Users go here





Accessing the USAR RAP requires the following pre-access steps listed below and an active Army Reserve Network (ARNet) account before continuing.



If you can already access your mail.mil email from your computer, you may already have PreAccess 1-4 complete, but still need to complete PreAccess 5.



Pre usage Steps
PreAccess 1:   Have a CAC Reader
PreAccess 2:   Install the DoD Certificates
PreAccess 3:   Use built in or install ActivID 7.1.0.153
PreAccess 4:   Internet Explorer Adjustments (including adding 'army.mil'
                        to compatibility view settings)




Installation Steps:



Download the Citrix Workspace app file from:

https://www.citrix.com/downloads/workspace-app/windows/workspace-app-for-windows-latest.html



Click on blue button titled:  Download Citrix Workspace app for Windows

blue download button

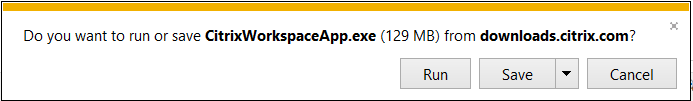

Click down arrow (next to Save) and select Save and Run

Download Bar



image from phone

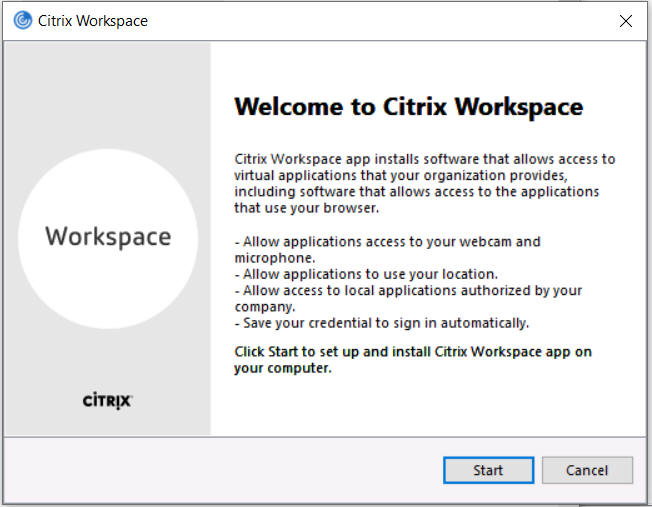

Select Start

Install Citrix Workspace

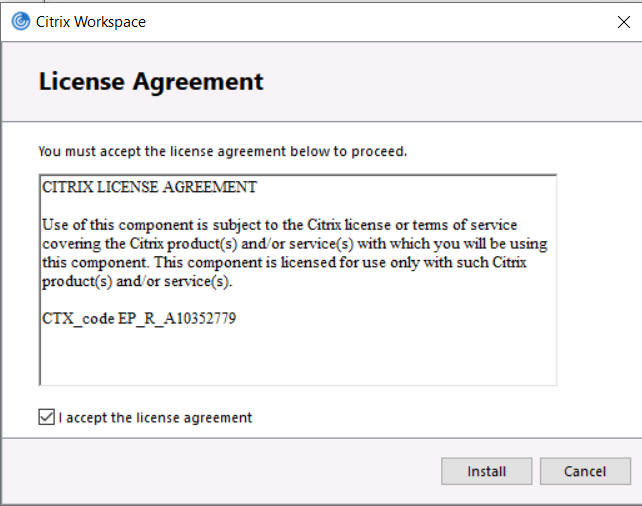

Click the box next to I accept the license agreement then click Install

Select I Accept

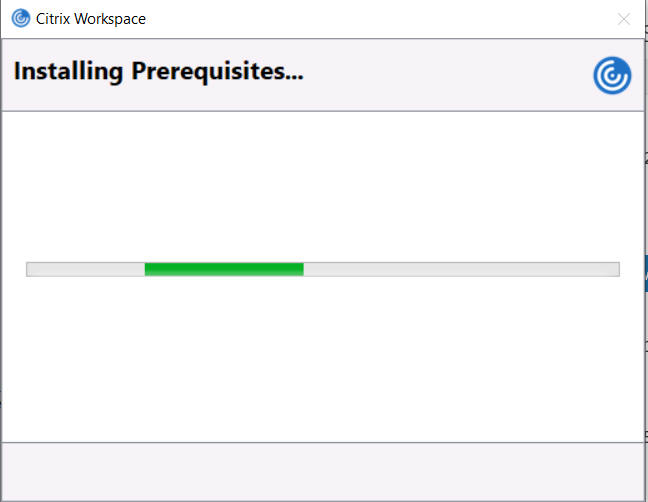

You will see it installing

see it instaling

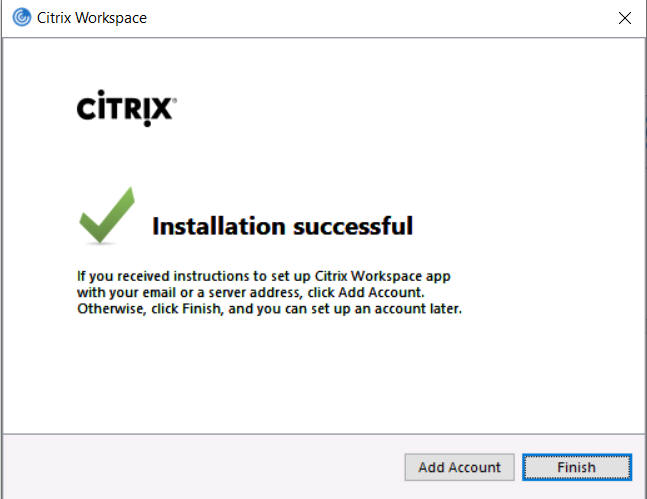

Select Finish

Select Finish

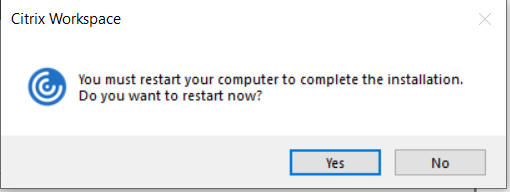

You must restart computer

Restart Computer

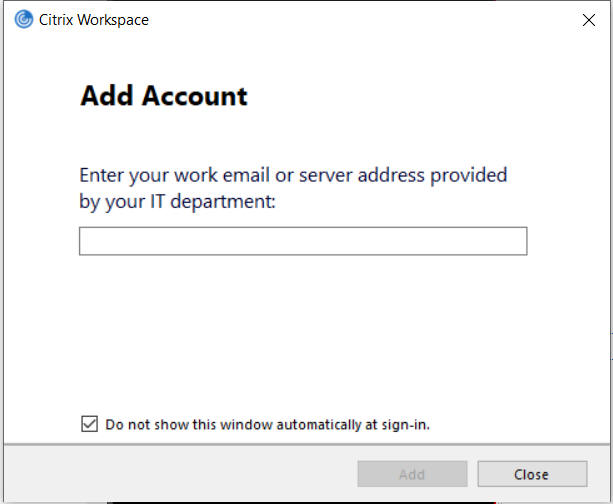

After restart, click Do not show this windows automatically at sign-in, then Close

After restart





Go to this web address:

https://rasxtra.usar.army.mil

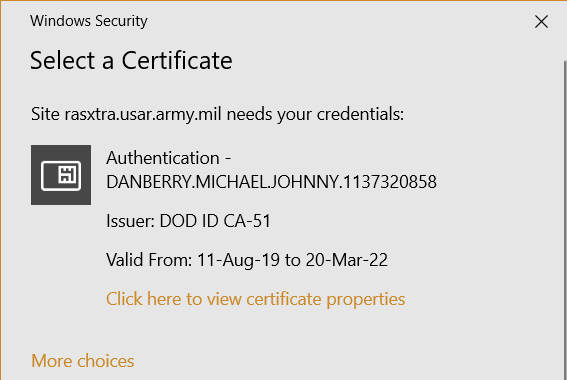

Select your Authentication (16 digit) certificate, click OK

Authentication Certificate image



After entering 6-8 digit CAC PIN, click OK

Entter PIN

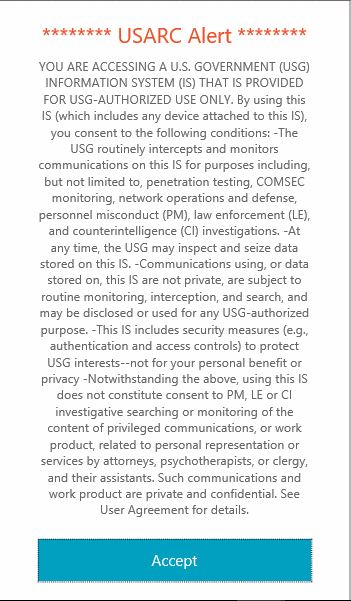

Read the USARC Alert, then select Accept

USARC Alert message

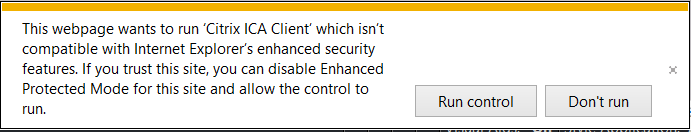

Will need to Run this control

Runthiscontrol



Select your Authentication (16 digits) certificate, click OK

Authentication Certificate image



After entering 6-8 digit CAC PIN, click OK

Entter PIN



Read the USARC Alert, then select Accept

USARC Alert message

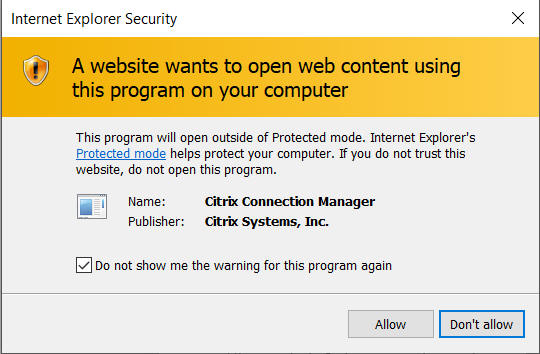

Check the Do not show me the warning for this program again box, then click Allow

Wants2Run

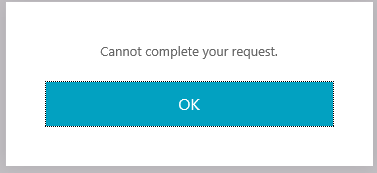

I hope you don't receive this.  I was unable to get past this point

error

NOTE: A Soldier wrote to me and stated that their ARNet account was disabled, and had to call the AESD-R help desk to get it re-enabled to get past this error.



If you can get past the error above, I believe this is what you will see.

The below cannot be verified.



Click the AR Desktop icon

ARNetDesktop



Connecting to ARNet

Connecting



Select your Authentication (16 digits) certificate, click OK

Authentication Certificate image





After entering 6-8 digit CAC PIN, click OK

Enter PIN



Click OK

Verify CAC

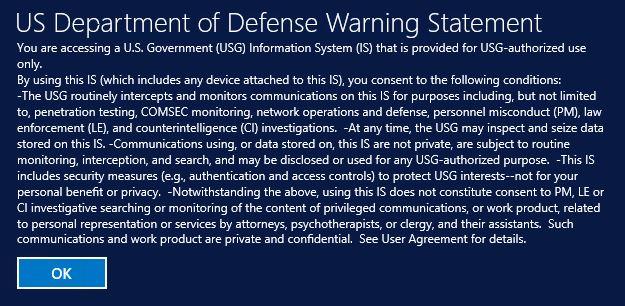

Read US DoD Warning Statement, Click OK

Read Warning

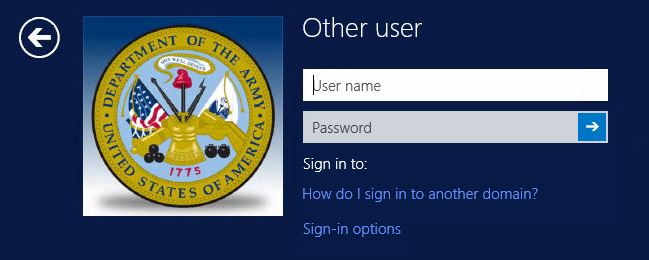

Click Sign-in options

Pick Sign in Option

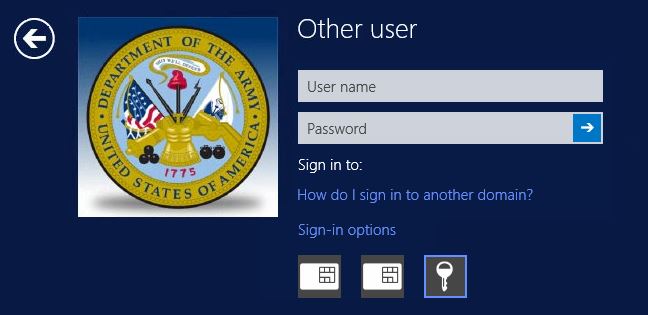

Click either of the smart card chip icons

Selecing Smart Card

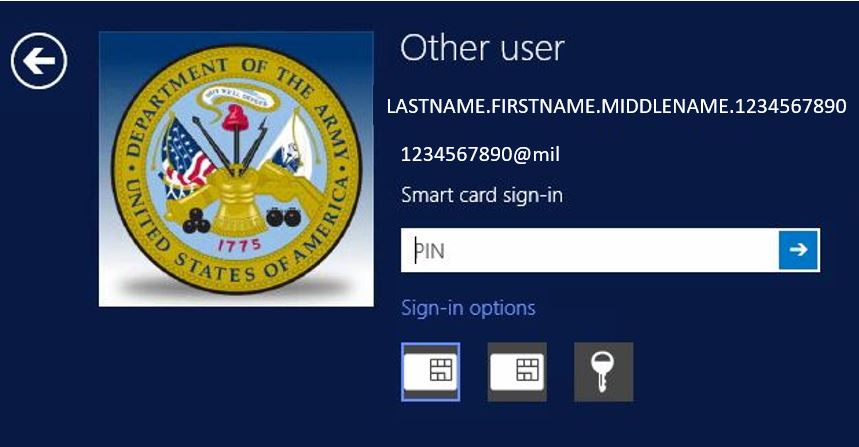

Look for the 16 digit number@mil certificate, then enter PIN

Look for ID cert

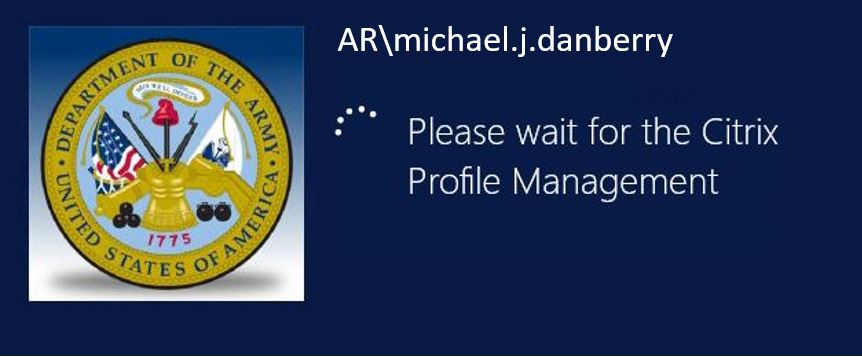

Waiting to login to the ARNet

Please Wait



You are logging into a virtual version of your ARNet desktop





More information:

You can use Outlook on this virtual desktop.  Please wait about 5 minutes after you log into the server before clicking it, or it will fail.



Do not save any files on this desktop, as they will get deleted.  Save files to your network drives.
